Frame : Extruded Aluminium and Adjustable Bars
AIROTEK single deflection grille and registers are recommended for applications requiring pattern adjustment in a single horizontal or vertical plane.
Product Description
AIROTEK single deflection grille and registers are recommended for applications requiring pattern adjustment in a single horizontal or vertical plane.

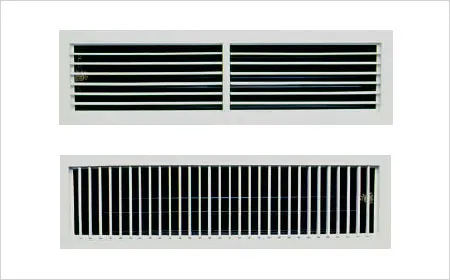

AIROTEK make model AG-V is a single deflection grille with vertical adjustable blades and generally used in a high side wall application where vertical blades will control the spread and throw distance of the air pattern to accommodate various layouts.
Model AG-H is also a single deflection grille with horizontal adjustable blades. Horizontal blades will control the rise and drop of the air pattern, typically cool air upwards along the ceiling.
Spacing between the blades is 20 mm, thus maintains high effective area, which minimize outlet velocity, reduce pressure drop and assures quite operation.
AIROTEK models AG-V-D and AG-H-D are single deflection grilles with integral damper. Dampers are opposed blade design with screwdriver slot operator.
Features / Advantages
● 32 mm wide face border with a 27 mm flange standard.
● Rigid, heavy gauge extruded frame with reinforced mitered corners.
● Streamline shape extruded blades on 20 mm centers. Blades positively hold deflection setting under all conditions of velocity and pressure.
● Aluminum integral dampers are opposed blade design with screwdriver slot operator.
● Adjustable air pattern-Blades are friction pivoted and easily adjusted to provide desired spread or deflection.
● Standard RAL9016 powder coated. Collar damper in matt black shade. Other finishes available on request.
● High quality, extruded aluminium construction.
● Standard RAL9016 powder coated. Collar damper in matt black shade. Other finishes available on request.
Material & Finish
● High quality, extruded aluminium construction.
● Standard RAL9016 powder coated. Collar damper in matt black shade. Other finishes available on request.
